The Solid object tool allows you to draw arbitrary geometric objects on the scene. Using the Solid object tool, you can draw furniture, equipment and other obstacles on the scene.
To activate the Solid object tool, click the
button on the toolbar. You can also select it by navigating to Tools | Drawing | Solid object or using the Alt + U hot key.
Drawing a solid object
The solid object element can be drawn the same way as a polygon-shaped Wall.

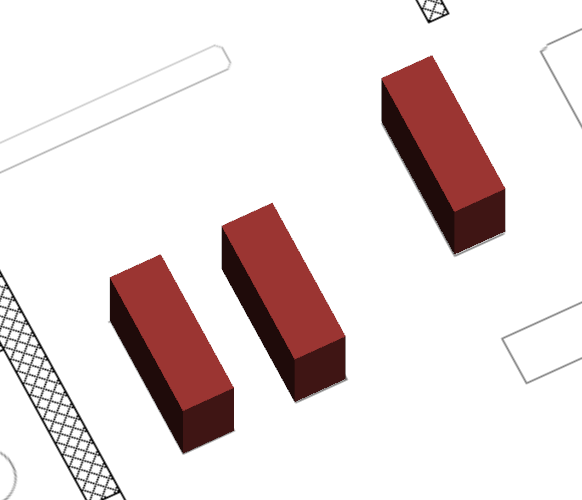

{width=60%}
In most regulatory documents, it is not recommended to place objects in the corridors along the escape roots that protrude from the wall for more than 2 meters.
Parameters
The Distance to bottom parameter determines the position of the object’s bottom surface relative to the floor.
A solid object element can also be configured with the same additional parameters as the Wall, such as material, fire factor measuring or ignoring it during the fire dynamics simulation.
